Assemblability Medical Care PCB Board Design Thick Copper And Aluminum Boards
Prototype PCB Assembly Description:
1. Quick-turn and flexible delivery
2. Support a wide range of PCBs: high-layer, multi-layer, rigid-flex, high frequency, high speed, etc.
3. Professional supplier positioning.
4. Seamless link from prototype to mass production.
5. Whole-flow quality assurance, IPC, Special industry inspection standard.
Prototype PCB Assembly Parameters:
| Item | Technical Parameter |
| Layer | 2-64 |
| Thickness | 0.3-6.5mm |
| Copper Thickness | 0.3-12 oz |
| Min Mechanical Hole | 0.1mm |
| Min Laser Hole | 0.075mm |
| HDI | 1+n+1,2+n+2,3+n+3 |
| Max Aspect Ratio | 20:01 |
| Max Board Size | 650mm*1130mm |
| Min Width/Space | 2.4/2.4mil |
| Min Outline Tolerance | ±0.1mm |
| Impedance Tolerance | ±5% |
| Min PP Thickness | 0.06mm |
| Bow &Twist | ≤0.5% |
| Materials | FR4, High-Tg FR4, Rogers, Nelco, RCC, PTFE, M4, M6, TU862, TU872 |
| Surface Finished | HASL, HASL Pb Free Immersion Gold/Tin/Silver Osp, Immersion Gold+OSP |
| Special Capability | Gold Finger Plating, Peelable, Carbon ink |
FAQ:
Q. How is the delivery?
Usually, our delivery time is about four weeks, but it depends on the actual situation when we receive your order.
If your order is urgent, please contact us directly, and we will prioritize and do our best to give you a satisfactory delivery time.
Q. What is your Minimum Order Quantity (MOQ)?
There is no limit to our MOQ, depending on the specific requirements, samples and mass production can be supported, and customized models are supported.
Prototype PCB Assembly Introduction:
The earliest use of printed circuit boards is paper-based copper-clad printed boards. Since the advent of semiconductor transistors in the 1950s, the demand for printed boards has risen sharply. Especially with the rapid development and wide application of integrated circuits, the volume of electronic equipment is getting smaller and smaller, and the circuit wiring density and difficulty are getting bigger and bigger, which requires the printed board to be updated continuously. At present, the variety of printed boards has developed from single-sided to double-sided, multi-layer boards and flexible boards; the structure and quality have also developed to ultra-high density, miniaturization, and high reliability.
Product Tags:
|
|

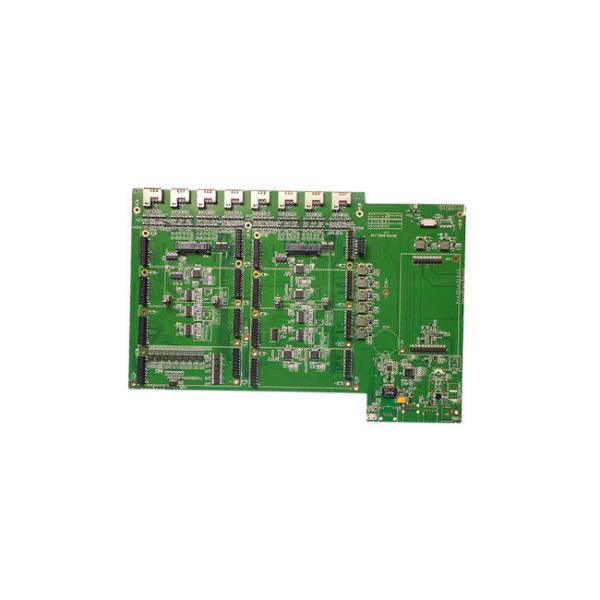

TU862 Medical Care PCB Board Design Assemblability Custom Pcb Design Images
|
